QT18.300 Worktop Connectors

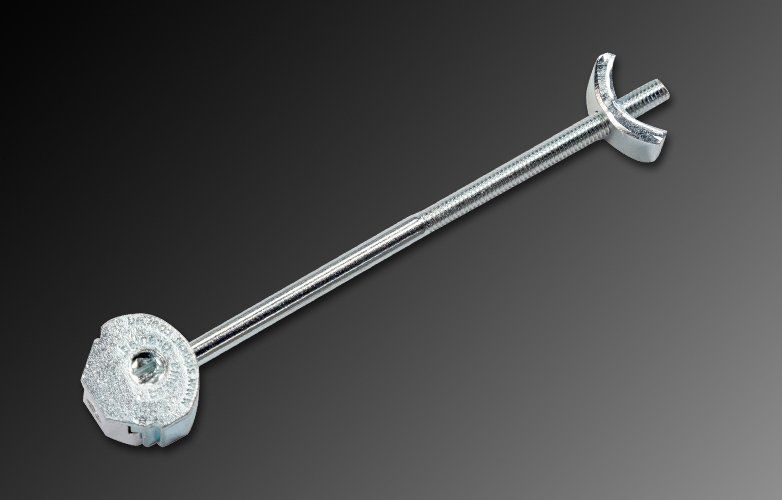

Super Slim Zipbolt Solid Compact Laminate Worktop Connector
12-15mm

PRODUCT CODE: QT18.300

SIZE: 100mm(L) X 8mm(H) X 20mm (Dia)

DRIVE: T25 Torx

METHOD OF TENSIONING: CORDLESS DRILL OR HAND RATCHET

WORKTOP THICKNESS: 12mm -15mm

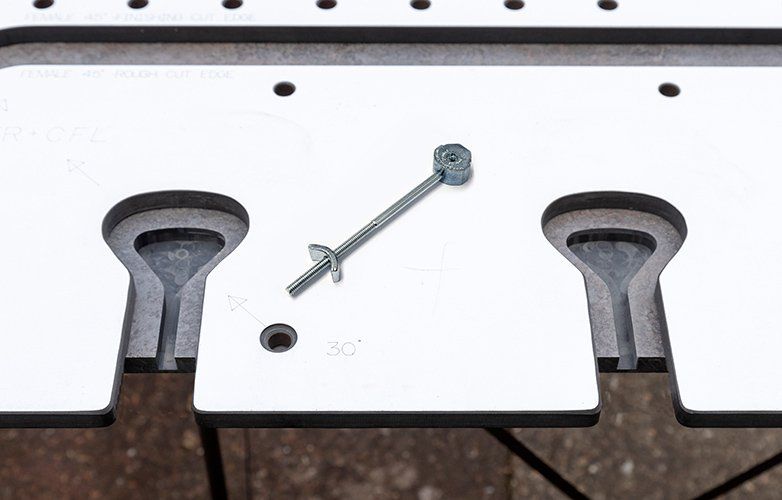

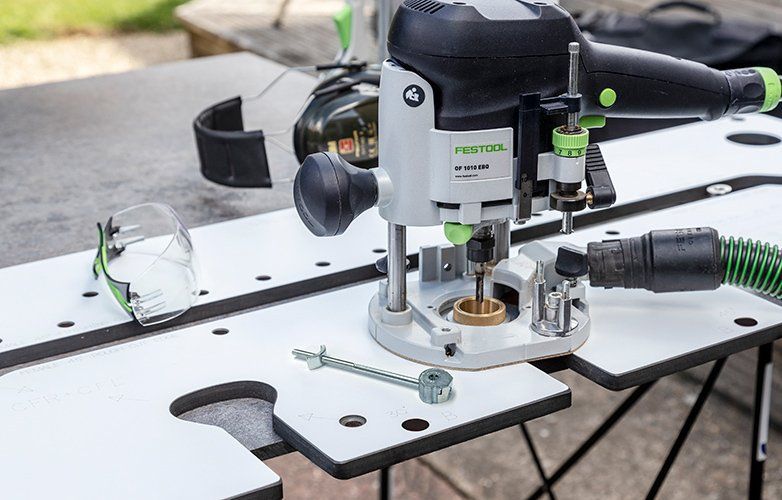

APPLICATION: 6mm ROUTER CUTTER AND STD ROUTER JIG with a 30mm Template  Guide

"THE ZIPBOLT WORKTOP CONNECTOR IS THE NUMBER ONE TRADEMANS CHOICE"

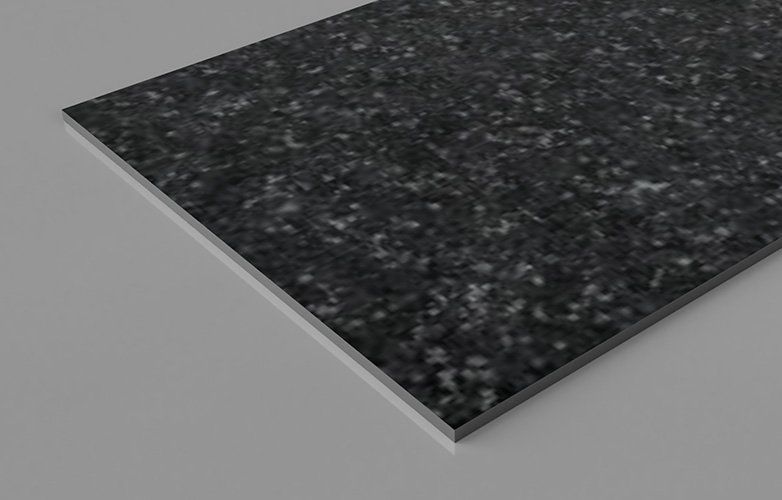

The Super Slim Zipbolt QT18.300 has again tested engineering limits and we have been able to reduce the profile thickness to just 8mm without compromising torque/tensioning especially relative to the size reduction. The requests for such a connector came from the countertop industry with the development of HPL and Compact laminate being very slim, approximately 13mm there was a need to have a mechanical fastener to pull and hold these materials together. The 18.300 also has a difference in the drive tool used, in this model a Torx bit size T25 is needed and this offers extremely positive engagement of the bit into the drive housing, we suggest using a hand ratchet driver or a power tool with a torque setting
